Creating Scrollable Inventory Areas
Learn how to implement and configure smooth-scrolling inventory areas that enhance player experience in Ultimate Grid Inventory.
Enhancing Inventory Navigation with Scroll Areas
Large inventories need effective scrolling solutions to remain user-friendly. The Ultimate Grid Inventory system includes a specialized component called ScrollRectInventory that significantly improves how players interact with scrollable inventory areas.
Why Use ScrollRectInventory?
The ScrollRectInventory component offers several advantages over standard Unity scroll views:
- Drag-to-Scroll: Players can drag items near the edges to automatically scroll the view
- Smooth Animation: Scrolling is smooth and responsive, enhancing the user experience
- Customizable Sensitivity: Adjust scroll speed and sensitivity to match your game's feel
- Intuitive Interaction: Players don't need to use the scroll wheel while dragging items
- Mobile-Friendly: Works well on touch devices where scroll wheels aren't available
Creating a Scrollable Inventory Area
Create the ScrollRectInventory Component
To add a scrollable area to your inventory UI:
- In your UI scene, right-click in the Hierarchy panel
- Navigate to Ultimate Grid Inventory > ScrollRectInventory
- This creates a pre-configured GameObject with the ScrollRectInventory component

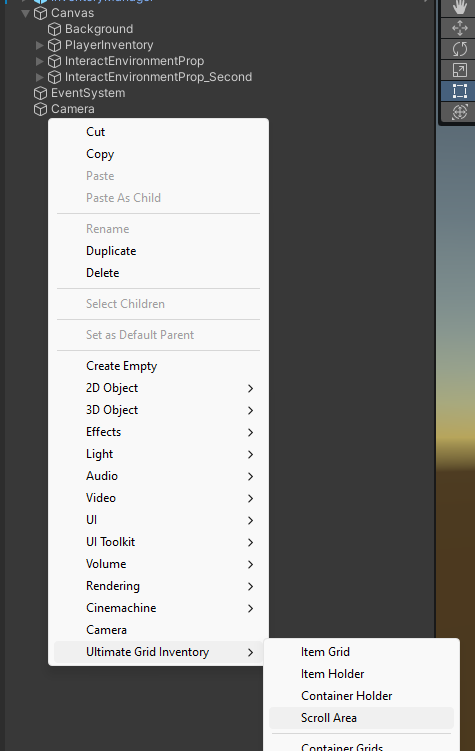

Creating the ScrollRectInventoryLoading image
The created GameObject includes:
- A ScrollRectInventory component (enhanced version of Unity's ScrollRect)
- A Viewport child object
- A Content child object where your inventory elements will be placed
Customize the Appearance and Layout
Adjust the scroll area to match your UI design:
- Select the ScrollRectInventory GameObject
- In the Inspector, modify the RectTransform to set the desired size and position
- Customize the visual elements:
- Add a background image to the main GameObject
- Style the scrollbar to match your UI theme
- Adjust the Viewport's mask settings if needed

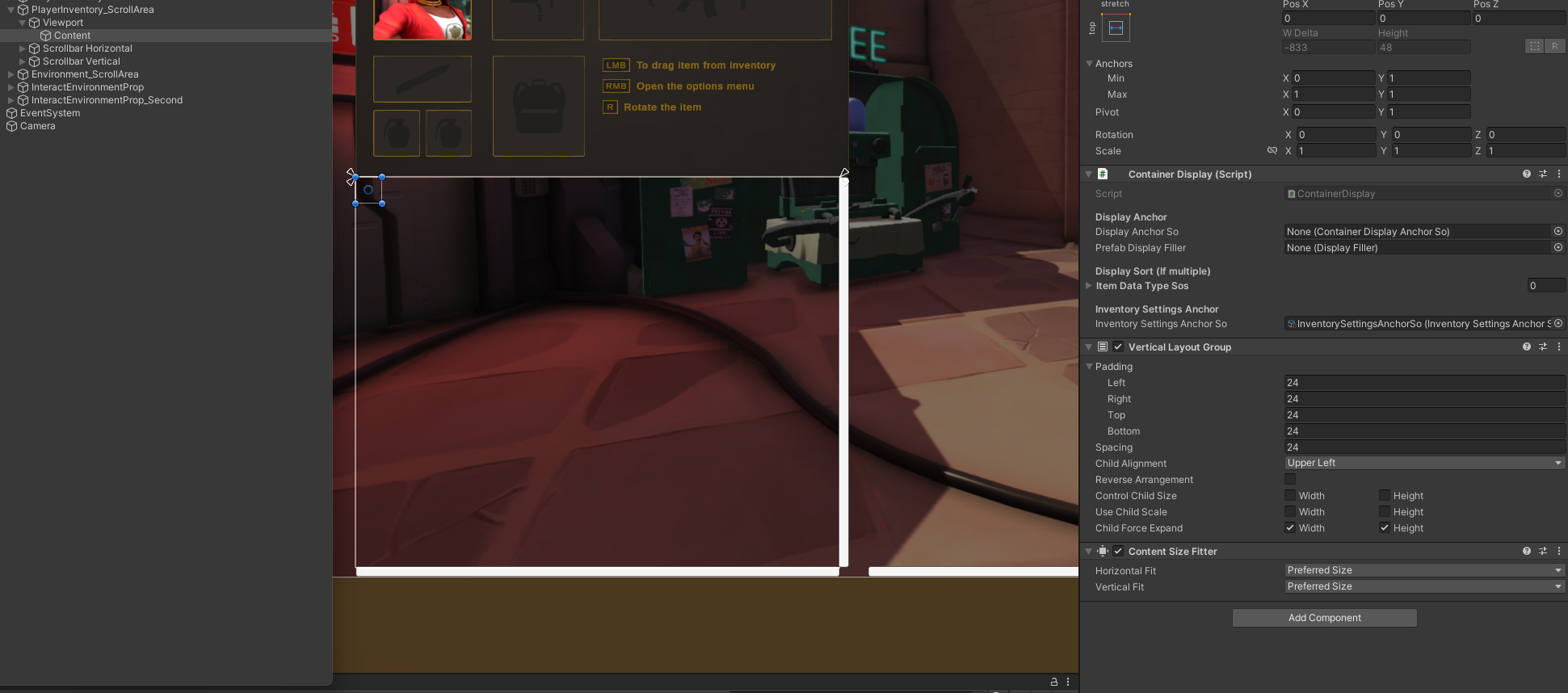

Customizing the ScrollRectInventoryLoading image
You can also adjust technical settings:
- Horizontal/Vertical: Choose which directions can scroll
- Movement Type: How the content moves (Unrestricted, Elastic, Clamped)
- Elasticity: How bouncy the scrolling feels at the edges
- Scroll Sensitivity: How responsive the scrolling is to input
Configure Auto-Scroll Behavior
The auto-scroll feature activates when players drag items near the edges of the scroll area:
- Select your ScrollRectInventory GameObject
- In the Inspector, find the "Debug Gizmos" checkbox and enable it
- You'll see red dotted lines indicating the auto-scroll trigger areas
Debug Gizmos VisualizationLoading image
- Adjust the auto-scroll settings in your Inventory Settings:
- Padding Percentage: How large the edge-trigger areas are
- Scroll Speed: How quickly the view scrolls when triggered
- Scroll Smoothing: How gradually the scrolling accelerates
The Debug Gizmos are only visible in the Unity Editor and won't appear in your final game build. They're a development tool to help you visualize and configure the auto-scroll areas.
Add Inventory Content
Now you can add inventory elements to your scrollable area:
-
Select the Content child object of your ScrollRectInventory
-
Add your inventory components to this object:
- For container displays, add the Container Display component
- For grid displays, add your grid visualization elements
- For item lists, add your item UI elements
-
Make sure the Content's height is set appropriately:
- For dynamic content, you may need to use a ContentSizeFitter
- For fixed grids, set the height manually to accommodate all items
Testing Your Scrollable Inventory
To ensure your ScrollRectInventory is working correctly:
-
Enter Play mode in the Unity Editor
-
Try these interactions:
- Drag an item near the top/bottom edges to trigger auto-scrolling
- Use the scrollbar to navigate the inventory
- Use the mouse wheel to scroll (if enabled)
- Verify that items can be dragged between different parts of the scrollable area
-
Check for these common issues:
- Content not fully visible (adjust Content size or ScrollRect settings)
- Scrolling too fast or too slow (adjust scroll speed in Inventory Settings)
- Auto-scroll not triggering (check padding percentage settings)
Next Steps
After setting up your scrollable inventory areas, you can:
- Create Container Displays to show inventory contents
- Set up Item Holders for equipment slots
- Customize the visual appearance of your inventory grids
- Fine-tune the auto-scroll settings for optimal player experience
Properly configured scroll areas are essential for creating user-friendly inventory interfaces, especially for games with large inventories or limited screen space. They allow players to navigate their items smoothly and intuitively, enhancing the overall gameplay experience.
